From the company KIKUSUI, YOTAVIS offers a wide variety of DC laboratory power supplies
for high power applications, with up to 1500 V DC  and 20kW power.

Details can be found in the different product catalogue’s of KIKUSUI:



Contact us for a consultation or quote!

From the company SIGLENT TECHNOLOGIES we are offering the following power supplies:

The SPS5000X-Series is a programmable Switching DC Power supply series that provides a wide range of output power using single-channel and multi-channel output configurations coupled with constant power capability. The series of power supplies includes sixteen models  with voltages to 160 VDC and power to 1080 W. The SPS5000X supplies can be connected in series (2 units) or in parallel (3 units) to meet the requirements of 0~320V and 0~270A, with a maximum combined power of 3240W.

Series Channel Output Display Resolution Setting Accuracy Readback Accuracy
SPS5051X One Channel,50V/10A/180W 2.4-inch OLED Screen 1mV/1mA voltage:0.1%±10mV current:0.1%±10mA voltage:0.1%±20mV current:0.1%±20mA
SPS5041X One Channel,40V/30A/360W 2.4-inch OLED Screen 1mV/1mA voltage:0.1%±10mV current:0.1%±30mA voltage:0.1%±20mV current:0.1%±40mA
SPS5042X One Channel,40V/60A/720W 2.4-inch OLED Screen 1mV/1mA voltage:0.1%±10mV current:0.1%±60mA voltage:0.1%±20mV current:0.1%±70mA
SPS5043X One Channel,40V/90A/1080W 2.4-inch OLED Screen 1mV/1mA voltage:0.1%±10mV current:0.1%±100mA voltage:0.1%±20mV current:0.1%±100mA
SPS5044X Two Channels,40V/30A/720W 2.4-inch OLED Screen 1mV/1mA voltage:0.1%±10mV current:0.1%±30mA voltage:0.1%±20mV current:0.1%±40mA
SPS5045X Three Channels,40V/30A/1080W 2.4-inch OLED Screen 1mV/1mA voltage:0.1%±10mV current:0.1%±30mA voltage:0.1%±20mV current:0.1%±40mA
SPS5081X One Channel,80V/15A/360W 2.4-inch OLED Screen 1mV/1mA voltage:0.1%±10mV current:0.1%±10mA voltage:0.1%±20mV current:0.1%±20mA
SPS5082X One Channel,80V/30A/720W 2.4-inch OLED Screen 1mV/1mA voltage:0.1%±10mV current:0.1%±30mA voltage:0.1%±20mV current:0.1%±40mA
SPS5083X One Channel,80V/45A/1080W 2.4-inch OLED Screen 1mV/1mA voltage:0.1%±10mV current:0.1%±40mA voltage:0.1%±20mV current:0.1%±50mA
SPS5084X Two Channels,80V/15A/720W 2.4-inch OLED Screen 1mV/1mA voltage:0.1%±10mV current:0.1%±10mA voltage:0.1%±20mV current:0.1%±20mA
SPS5085X Three Channels,80V/15A/1080W 2.4-inch OLED Screen 1mV/1mA voltage:0.1%±10mV current:0.1%±10mA voltage:0.1%±20mV current:0.1%±20mA
SPS5161X One Channel,160V/7.5A/360W 2.4-inch OLED Screen 1mV/1mA voltage:0.1%±100mV current:0.1%±5mA voltage:0.1%±100mV current:0.1%±5mA
SPS5162X One Channel,160V/15A/720W 2.4-inch OLED Screen 1mV/1mA voltage:0.1%±100mV current:0.1%±15mA voltage:0.1%±100mV current:0.1%±15mA
SPS5163X One Channel,160V/22.5A/1080W 2.4-inch OLED Screen 1mV/1mA voltage:0.1%±100mV current:0.1%±20mA voltage:0.1%±100mV current:0.1%±20mA
SPS5164X Two Channels,160V/7.5A/720W 2.4-inch OLED Screen 1mV/1mA voltage:0.1%±100mV current:0.1%±5mA voltage:0.1%±100mV current:0.1%±5mA
SPS5165X Three Channels,160V/7.5A/1080W 2.4-inch OLED Screen 1mV/1mA voltage:0.1%±100mV current:0.1%±5mA voltage:0.1%±100mV current:0.1%±5mA

Key Features

  • User enabled internal output discharge circuit to accelerate the down programming of the output voltage
  • Remote Voltage Sensing
  • List function up to 50 steps; can be created from the front panel or by importing list sequence files from a USB memory device
  • External analog voltage and resistor control of voltage or current output
  • External voltage and current monitoring output
  • OVP, OCP, LPP, OTP protection.
  • 4-inch OLED high brightness liquid crystal display, 170-degree viewing angle
  • Standard Interface：USB, LAN, Analog Control Interface
  • Optional Interface：USB-GPIB module
  • 1/2, 1/3, 1/6 rack mount size
  • Embedded Web Server offers remote control through a web browser without the need for the driver or software



Series Channel Output Display Resolution Setting Accuracy Readback Accuracy

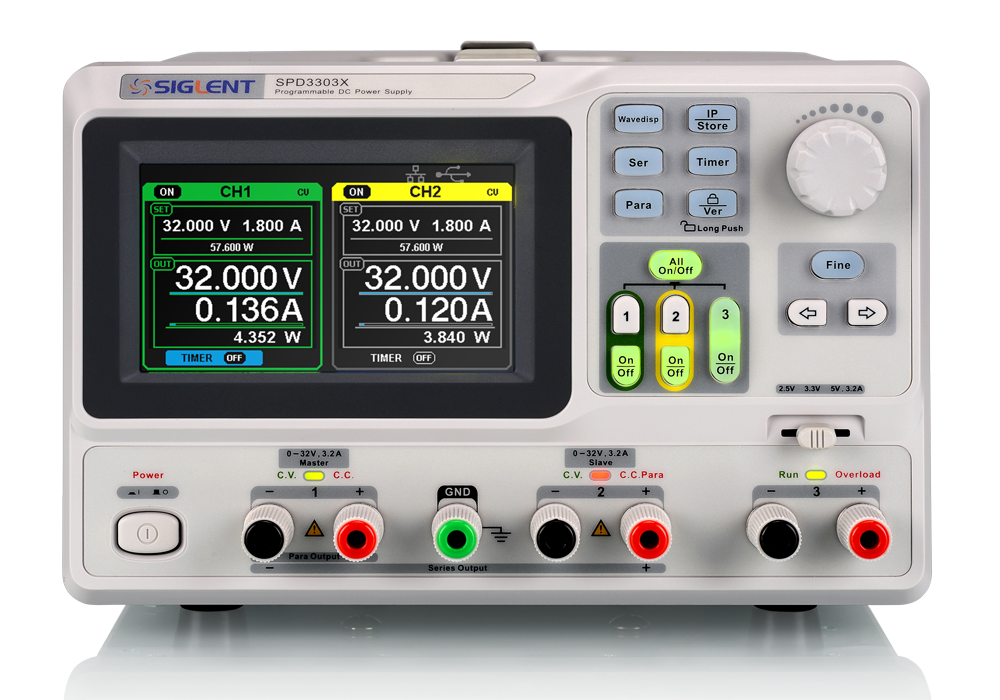

SPD3303X / SPD3303X-E

 CH1/2: Voltage 0 to 32 V, Current 0 to 3.2 A
CH3: Voltage 2.5/3.3/5.0 V, Current 0 to 3 A		 4.3″ color TFT-LCD 4 digit voltage display, 3 digit current display 10 mV, 10 mA /
1 mV, 1 mA		 Voltage ± (0.5% of reading + 2 digits)
Current ± (0.5% of reading + 2 digits)		 Voltage ± (0.5% of reading + 2 digits)
Current ± (0.5% of

SPD3303C

 CH1/2: Voltage 0 to 30 V Current 0 to 3A
CH3: Voltage 2.5/3.3/5.0 V Current 0 to 3 A		 LED display 4 digit voltage display, 3 digit current display 10 mV, 10 mA Voltage ± (0.5% of reading + 2 digits) Current ± (0.5% of reading + 2 digits) Voltage ± (0.5% of reading + 2 digits) Current ± (0.5% of reading + 2 digits)

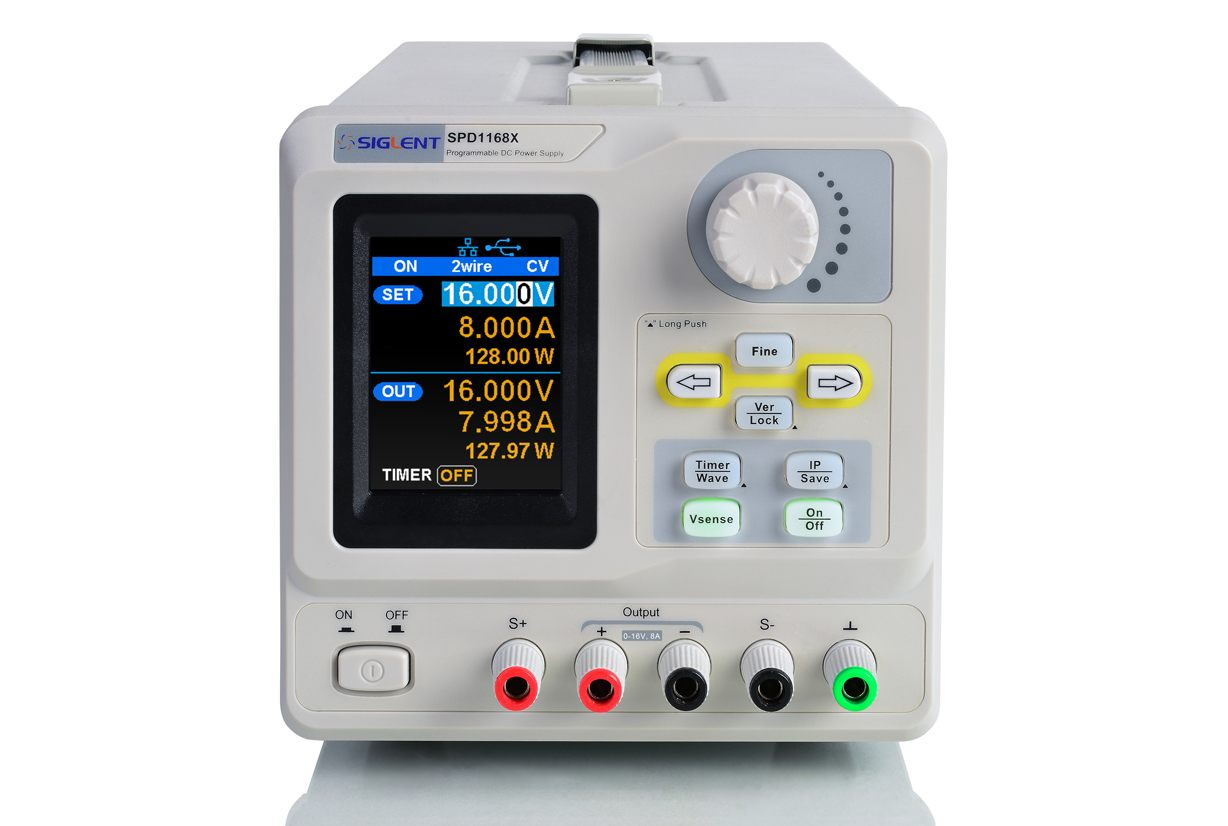

SPD1000X

 Output Voltage: 0 to 16 V Output Current: 0 to 8 A 2.8 inch true color TFT-LCD 5 digit voltage/4 digit current 1 mV/1 mA Voltage: ±(0.03% of reading+10 mV) Current: ±(0. 3% of reading+10 mA) Voltage: ±(0.03% of reading+10 mV) Current: ±(0. 3% of reading+10 mA)

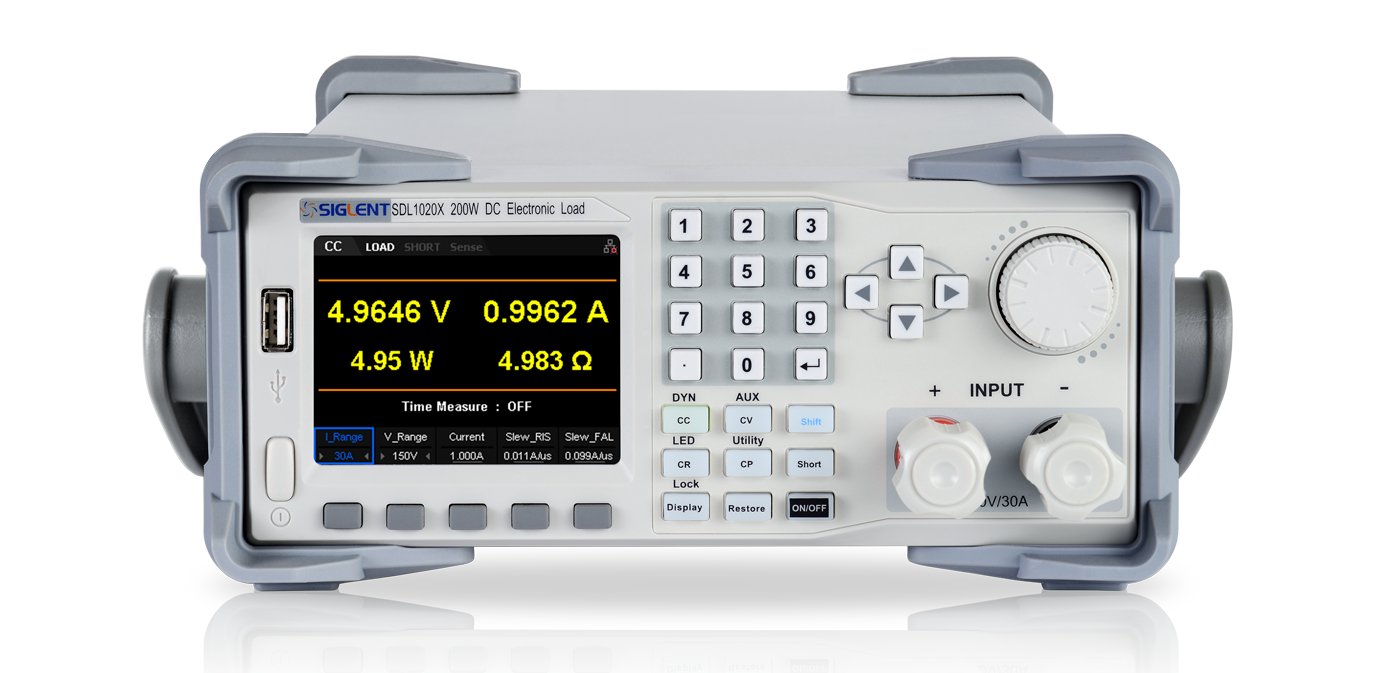

SDL1000X/SDL1000X-E series Programmable DC Electronic Load has a 3.5 inch TFT-LCD display, a user-friendly interface and superb performance specifications. The SDL1020X/SDL1020X-E models feature an input range of 150 V/30 A 200 W while the SDL1030X/SDL1030X-E have an input range of 150 V/30 A 300 W. The SDL1000X series leads with measurement resolution of 0.1 mV/0.1 mA and the base SDL1000X-E series resolution is 1 mV/1 mA and adjustable current rise times from 0.001 A/μs~2.5 A/μs. For remote communication and control, the SDL series includes RS232/USB/LAN interface types. The SDL1000X series delivers stability over a wide range of applications and can meet all kinds of testing requirements. including: Power, battery/handheld device design, industry, LED lighting, automotive electronics, and aerospace.

From the company SIGLENT TECHNOLOGIES we are offering the following DC loads:

Series Input voltage/current/power Mode CC Dynamic mode frequency Measuring speed Current Slew Rate Min. readback resolution

SDL1000X/X-E

 150 V/30 A 300W CC/CV/CR/CP 25 kHz up to 500 kHz 0.001 A/us~2.5 A/us 0.1 mV, 0.1 mA

Contact us for more details or a quotation!
